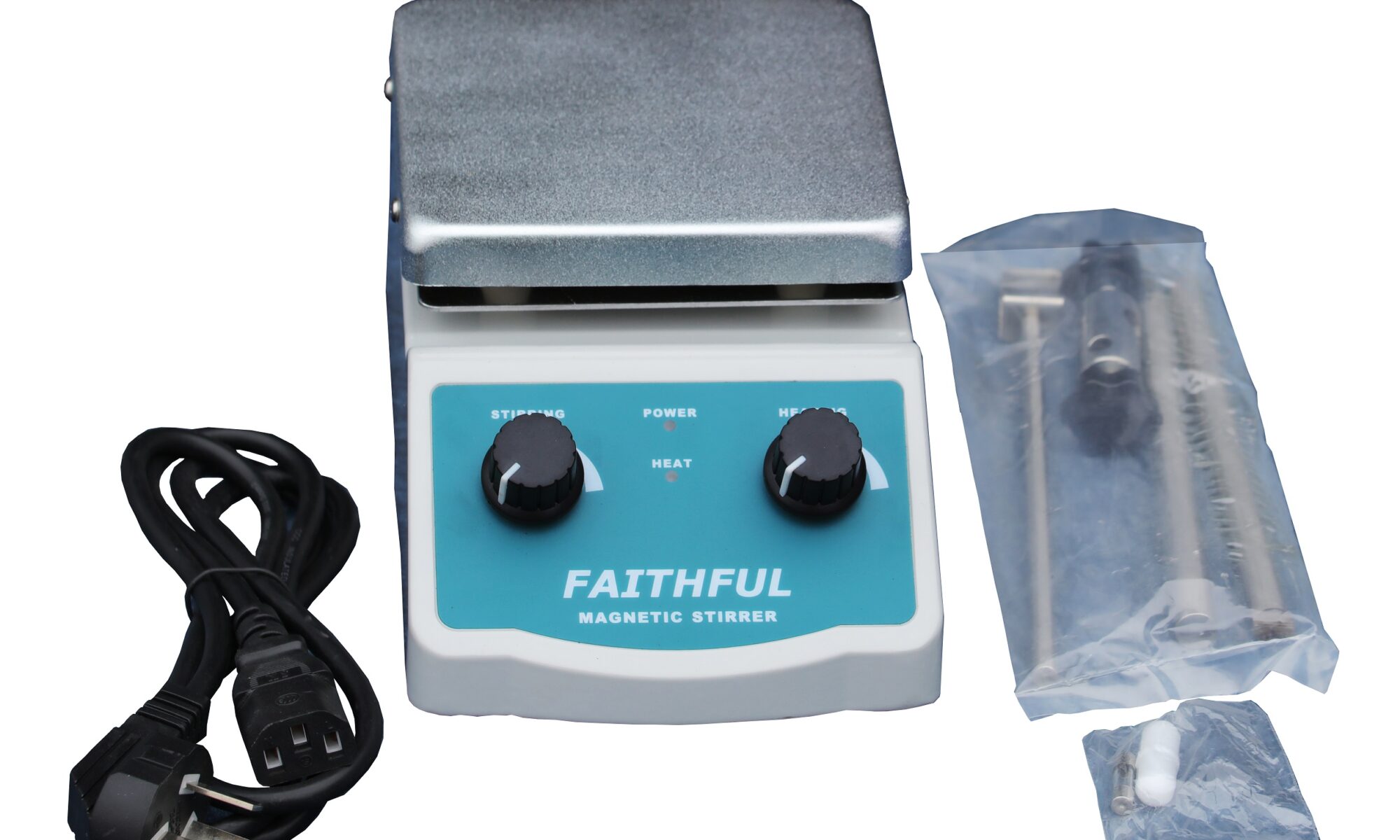

ANALOG ISITICILI MANYETİK KARIŞTIRICI

Açıklama

Maksimum sıcaklık 380 °C

• Maksimum Çevirme Hızı 2000 rpm

• Alüminyum Tabla

• 120 / 170 mm Tabla Ölçüleri

Model		SH-2	SH-3
Function	Volume (ml)	2000	5000
	Speed (r.p.m)	100-2000	100-2000
	Working time	Continuous
	Minimum revolution (r.p.m)	100	100
	Max.Temp. （℃）	380	380
Structure	Exterior	Cast Aluminium , Surface Spraying
	Plate size(mm)	120 x 120	170 x 170
	Driving mode	Motor	Motor
	Motor power (W)	10	20
	Heating Power(kW)	0.18	0.5
	Stir bar	PTFE	PTFE
Controller	Continuous operation	Yes
	Setting mode	Scale
	Speed display mode	Scale	Scale
	Timer	No
	Timer
	Operation function	No
	Temp. Sensor	No
Specification	Exterior size (WLH)(mm)	200x120x90	265x185x190
	Packing size (WLH)(mm)	250x180x120	280x210x220
	Plate size（mm）	120×120	170×170
	Plate load	3 KG	10 KG
	Power supply （50/60Hz） Current rating	110 V or 220 V
	NW/GW (kg）	1.9/3	2.2/3.4
